Pittsburgh Machine

20s Gauge

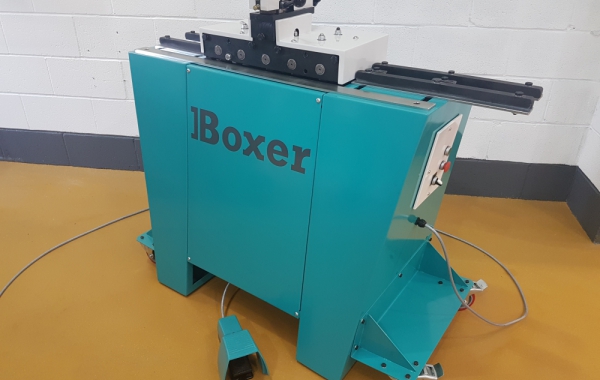

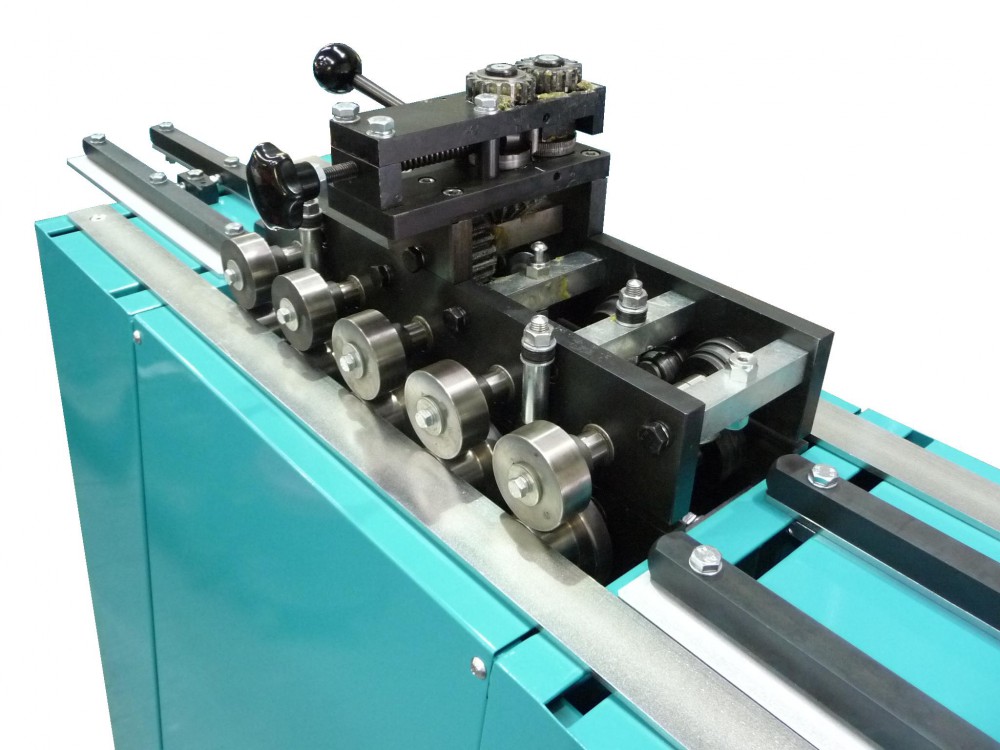

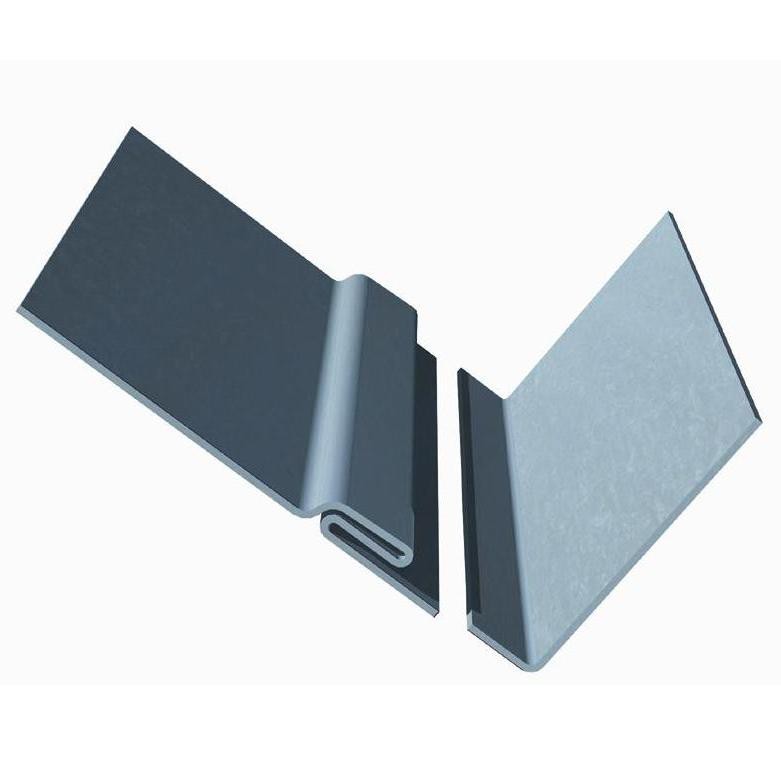

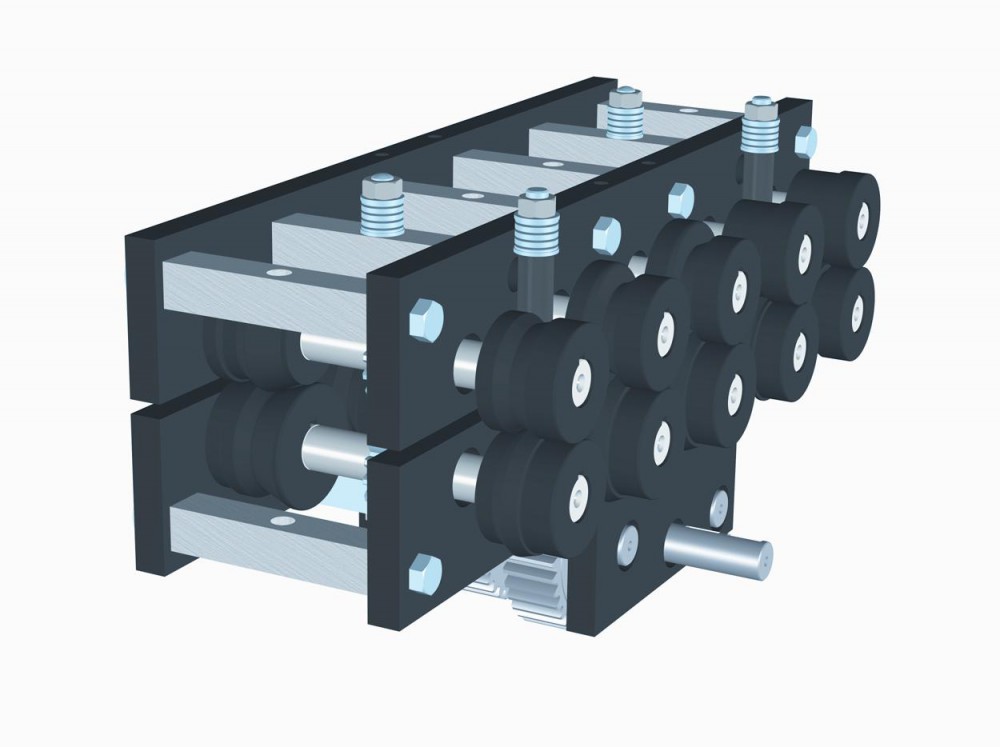

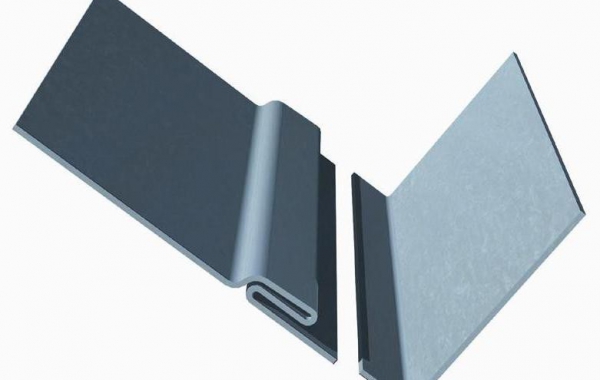

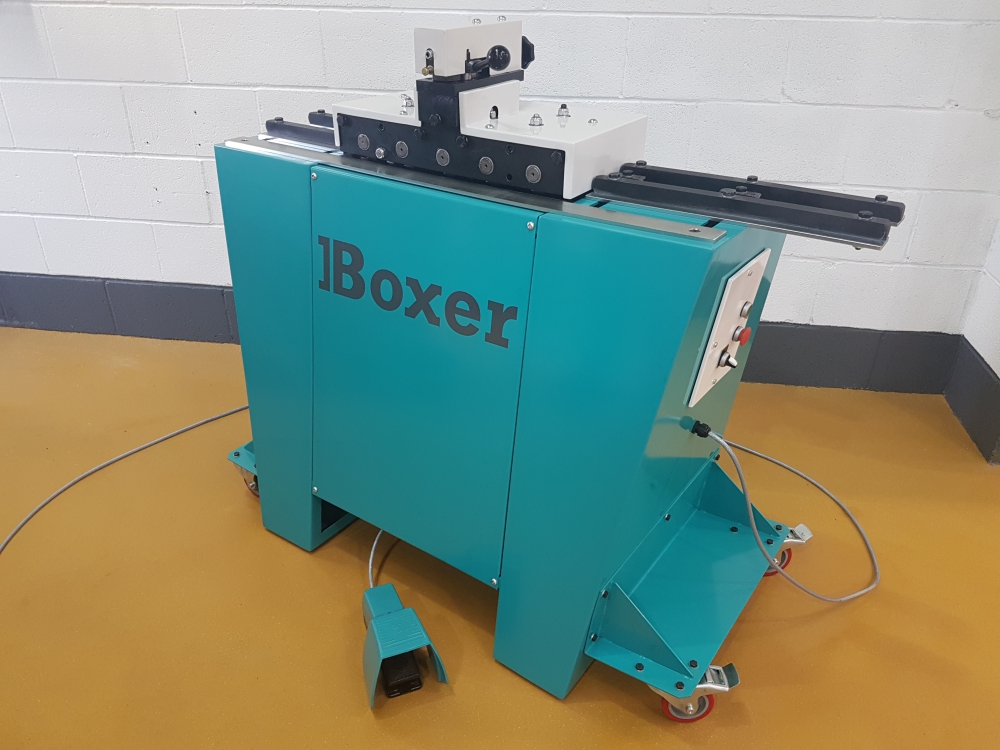

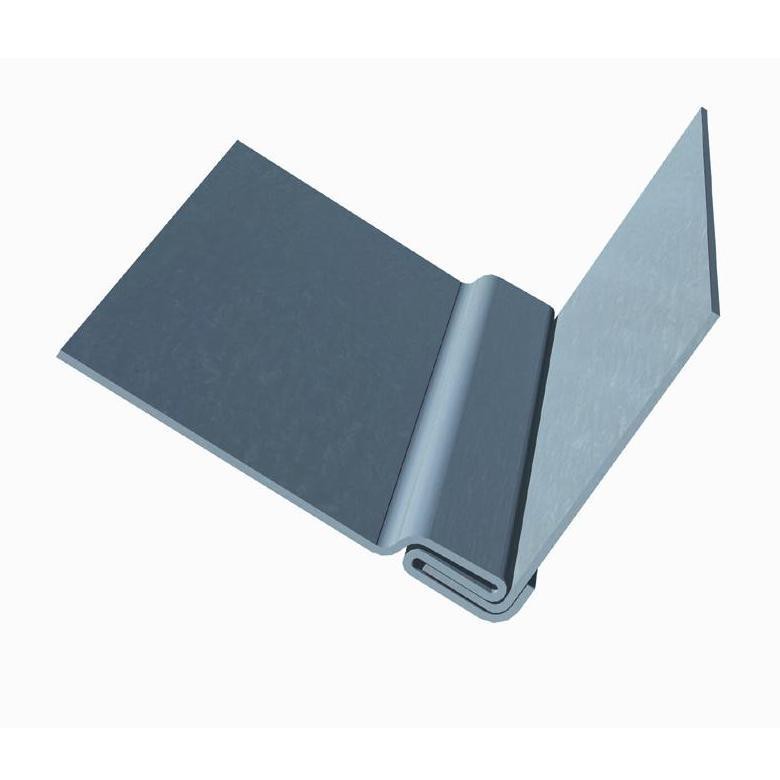

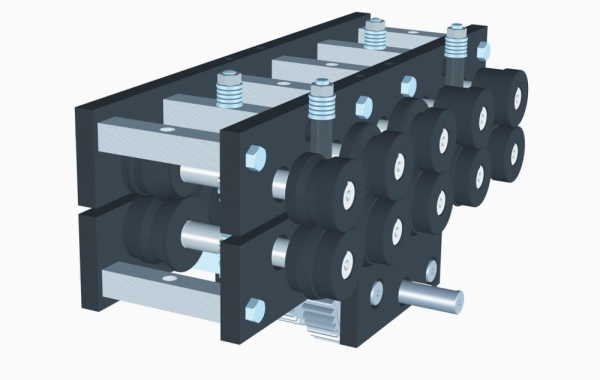

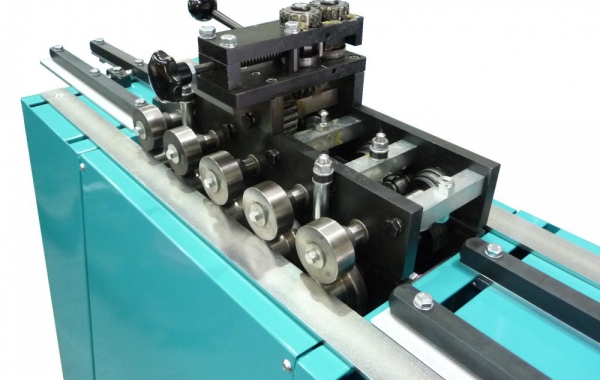

The 20's Pittsburgh rolls are fitted as standard to one side of the 5 stage machine with the option to fit 1 of 3 cnc machined roll sets to the outboard extension shafts.  This Pittsburgh tooling has a pocket size of 8.5mm and uses 22mm to form the seam in  material gauges from 0.5 to 1.0mm.

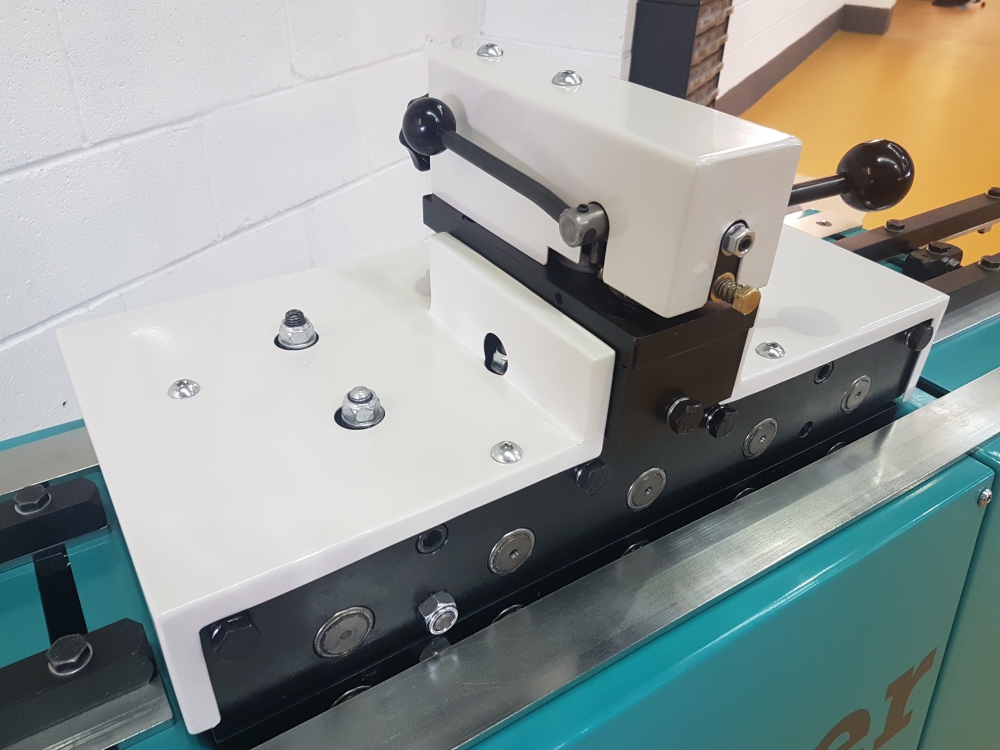

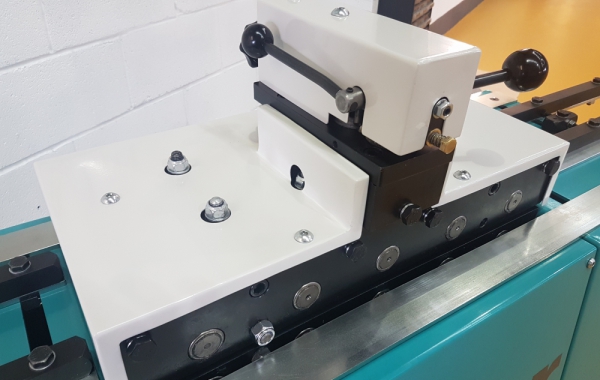

A flanging attachment can also be added to the top of the machine giving the ability to form a 10mm flange on internal and external curved edges.  see final option below.


Tooling Options


PROFILE

SIZE
Range mm
METAL USED
mm
GAUGE
mm
20's Pittsburgh
(fitted as standard)
8.5 pocket
22
0.5 - 1.0
Small Double Seam
10.5 seam
12.5 per edge
0.5 - 1.0
Right Angle Flange
11 high
10
0.7 - 1.0
Drive Cleat
28 wide
54 strip
0.5 - 1.0
Flanging Attachment
10 high
9
0.4 - 1.0
