22s Gauge S Cleat & Standing S Cleat Machine

Request a quoteRead options

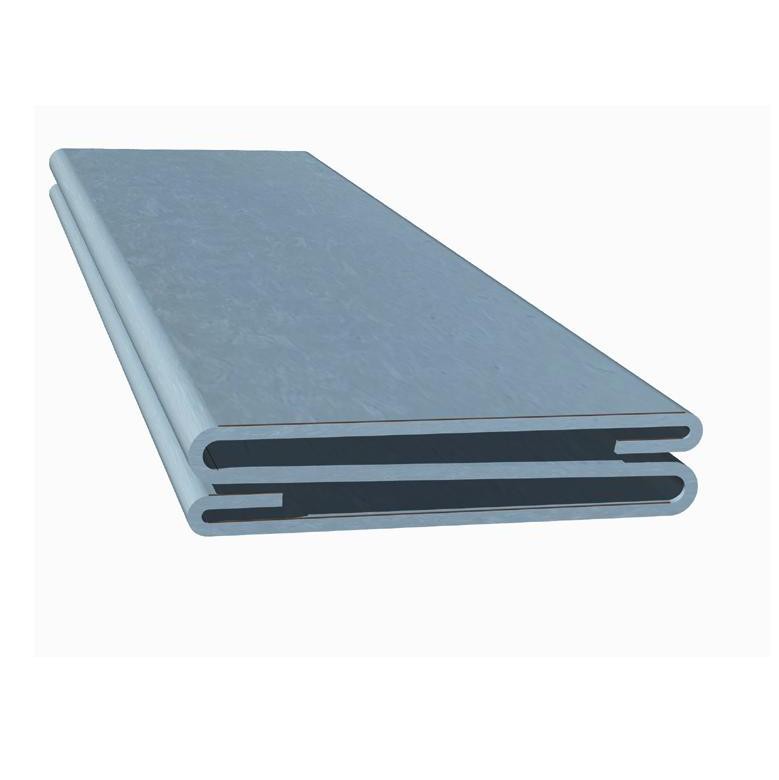

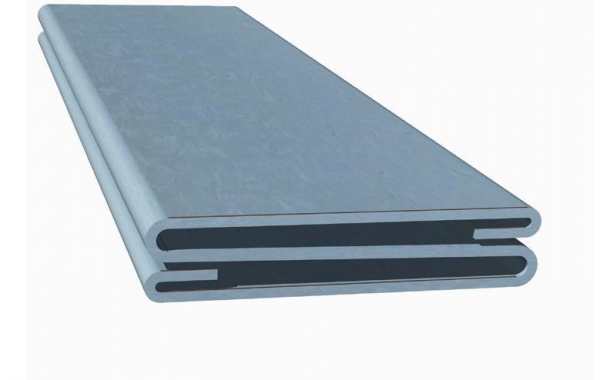

S Cleat profiles have been designed to complement the Drive Cleat profile as a means of joining the un-formed overlapping edges when making in-line duct connections.

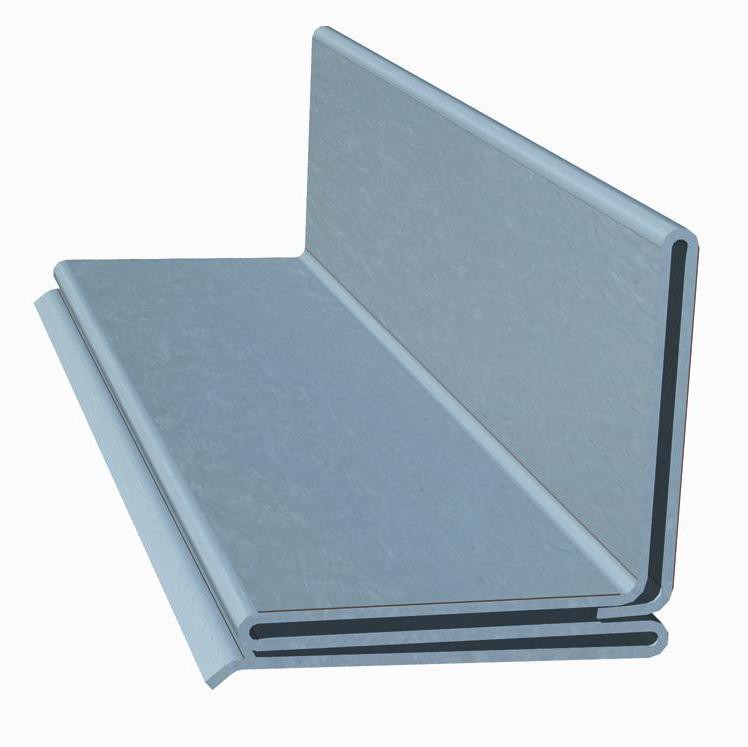

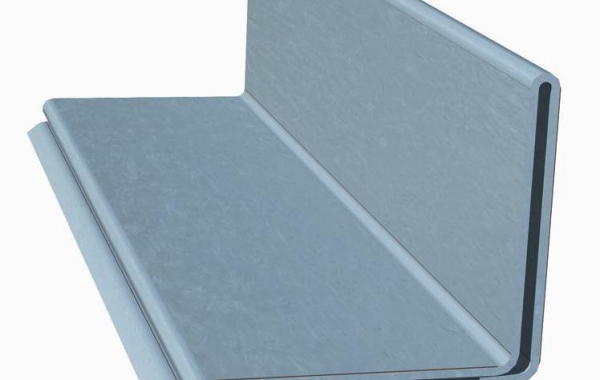

Both S Cleats are the same width as the Drive Cleat (28mm) giving a uniform appearance, but the Standing S Cleat has an additional 25 high flange to increase rigidity over long runs. They can both be formed in mild steel between 0.5 and 0.7mm.

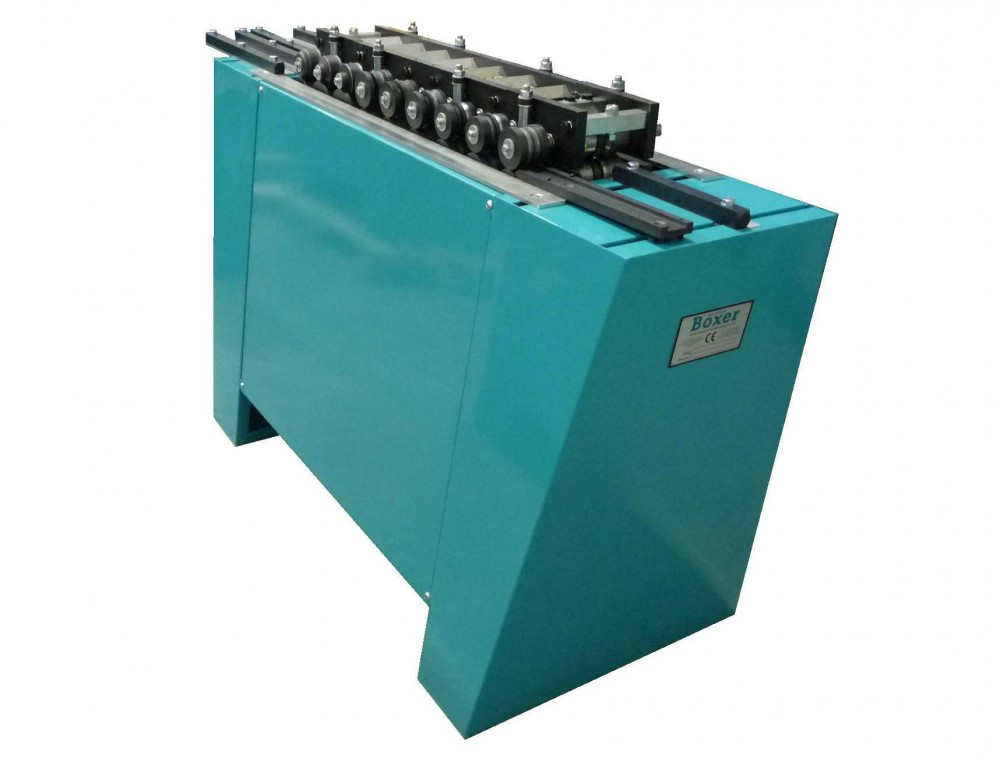

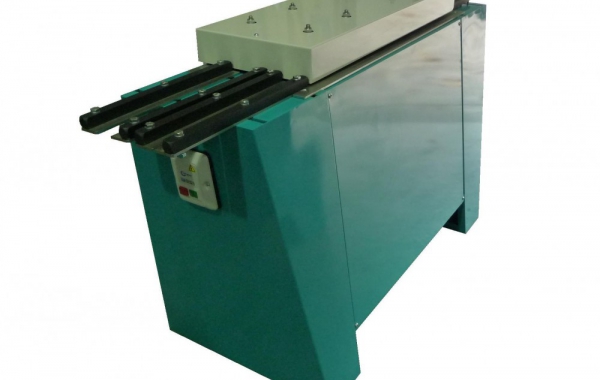

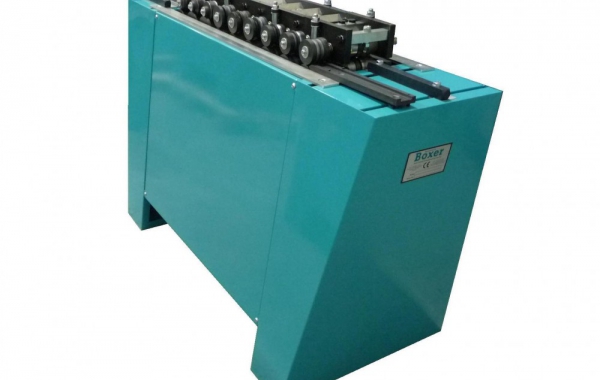

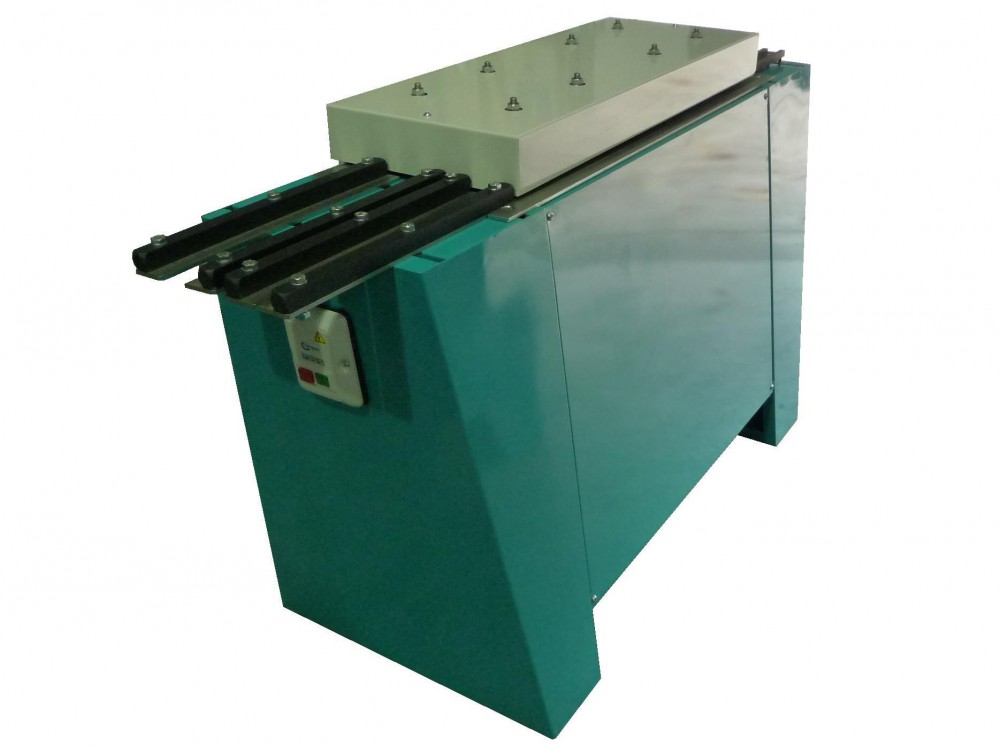

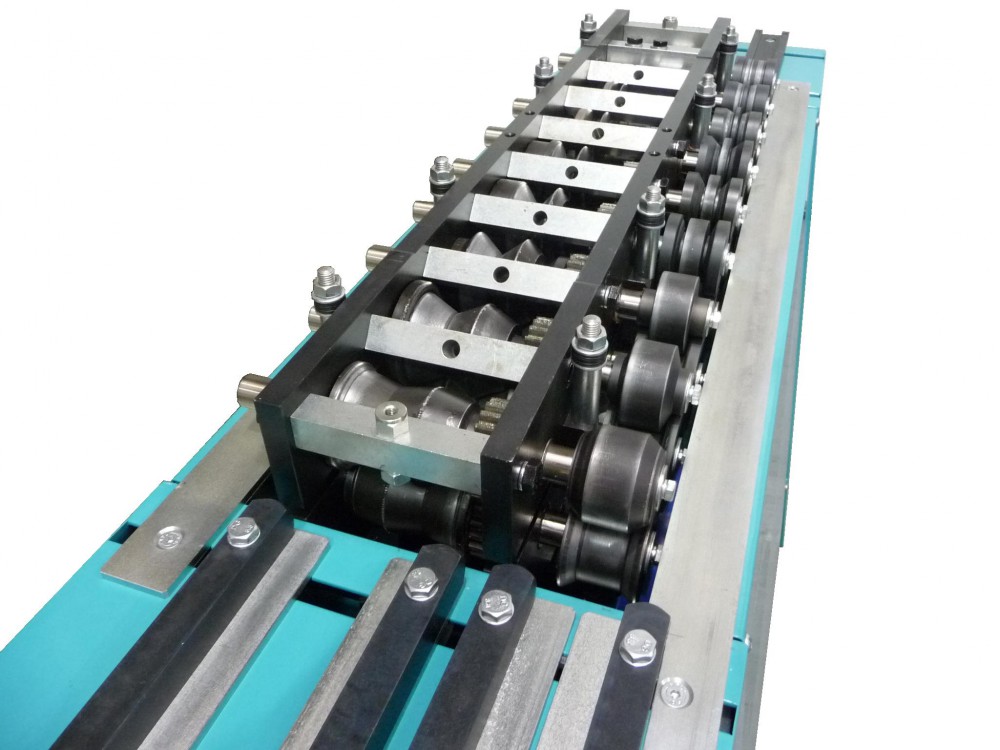

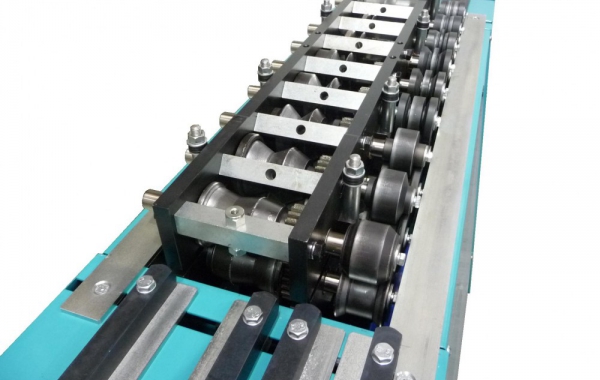

The S Cleat machine has nine forming stages with outboard extension shafts to both sides giving the option to fit any two of 11 roll sets.

The Standing S Cleat machine can either have S Cleat rolls on single extension shafts or double extension shafts with the option to fit any two of 11 roll sets.

Profile

Gauge mm

Metal used mm

Size range mm

Standing S Cleat

0.5 – 0.7

136 strip

28 wide

25 high

S Cleat

0.5 – 0.7

92 strip

28 wide

Small Pittsburgh

0.5 – 1.0

22

8.5 pocket

Double Seam

Small Double Seam

0.7 – 1.6

0.5  1.0

15.5 per edge

12.5 per edge

12.5 seam

10.5 seam

Plain Seam

0.7 – 1.0

12.5

12.0

Standing Seam

1.0 – 1.6

35

19 high

Right Angle Flange

0.7 – 1.6

10

11 high

Drive Cleat

0.5 – 1.0

54 strip

28 wide

Radius Cleat

0.5 – 1.0

54 strip

28 wide

Large Safe Edge

Small Safe Edge

0.7 – 1.6

0.5 – 1.0

14

15 return

3 in 1

0.5 – 1.0

43 – 3 bend

30 – 2 bend

15 – 1 bend

16 high
