Simple closing of ducts in the thin sheet range

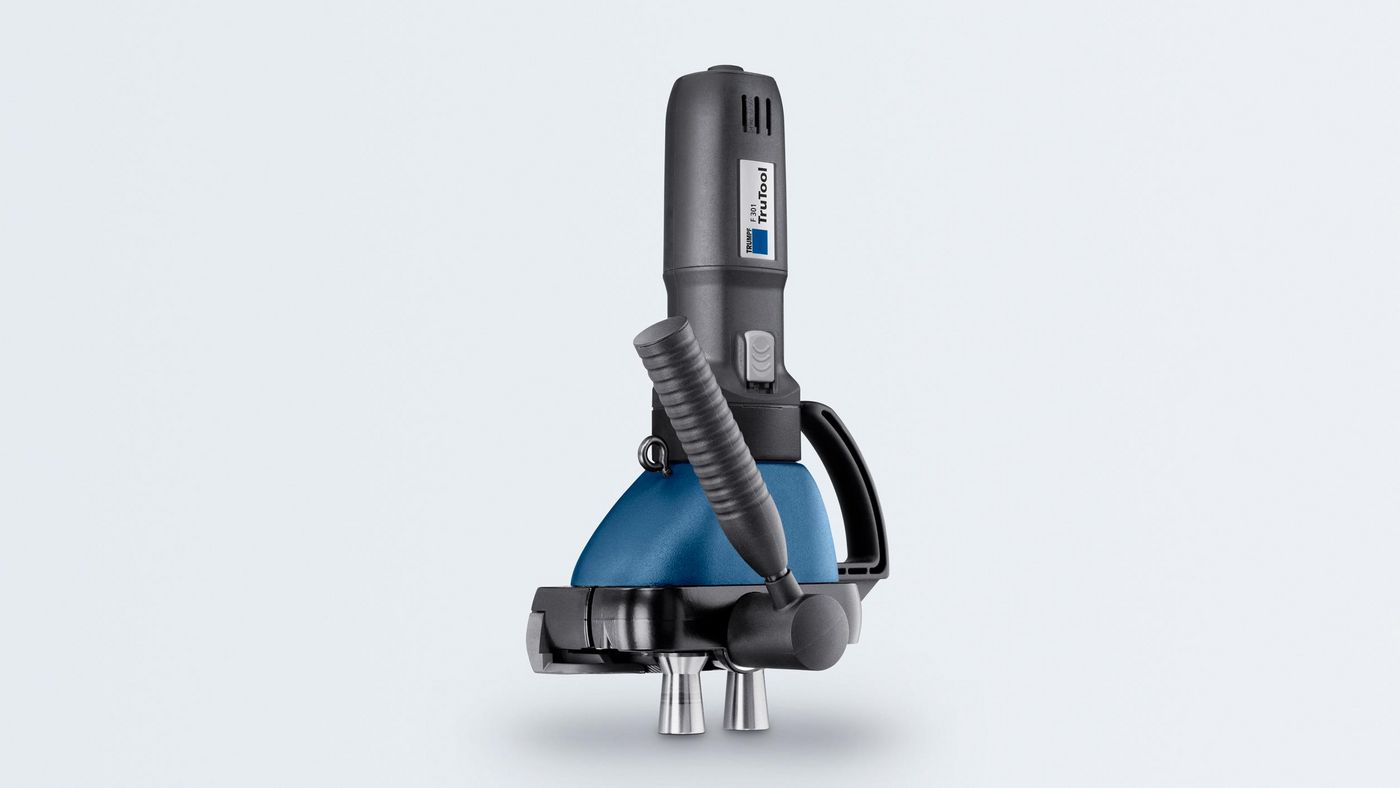

With the TruTool F 301, you can close Pittsburgh lock seams effortlessly on straight or curved ducts with sheet thicknesses of 0.45 mm – 1 mm for mild steel. There is no need for refitting when processing formed or folded pieces. The adjustment to the sheet thickness is automatic and the forward feed guarantees a consistent and tight fold.

Easy to use
With the TruTool F 301 you can close formed or folded pieces without refitting the machine.

Flange height and sheet thickness
Suitable for flange heights of 9 mm – 13 mm and for sheet thicknesses of 0.75 mm – 1.25 mm.

Excellent process reliability
Automatic adjustment to the sheet thickness gives you consistent seam results.

Area of application
With the TruTool F 301, you can lock seams on straight and curved ducts.


Specification Video
  1. Maximum sheet thickness, steel 400 N/mm² (min.)

    0.45 mm

    Maximum sheet thickness, steel 400 N/mm² (max.)

    1 mm

    Flange height (B) with sheet thickness 0.45 - 1.0

    8 - 11 mm

    Smallest inner radius (preformed)

    150 mm

    Smallest outer radius

    300 mm

    Working speed

    4 m/min - 7 m/min

    Nominal power consumption

    555 W

    Weight without cable

    5.2 kg
